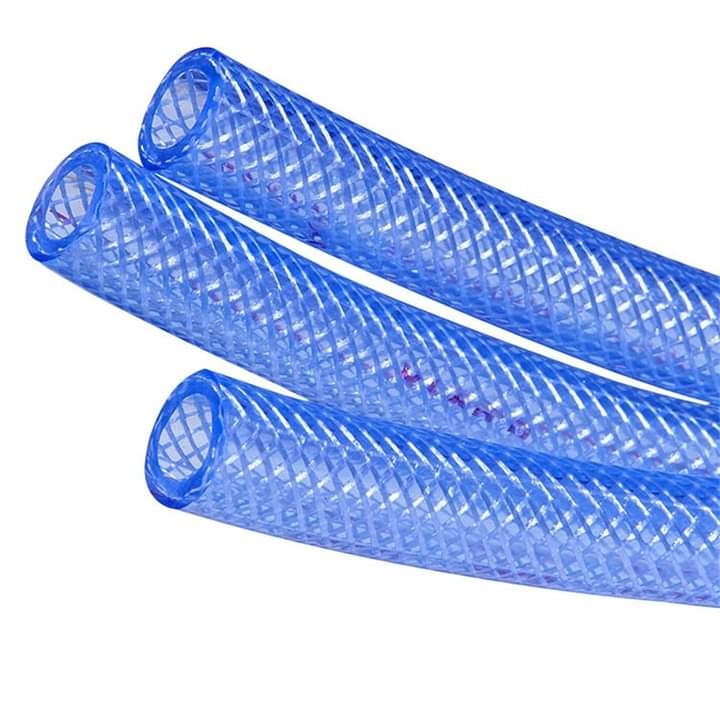

The primary function of the braiding is to prevent the hose from expanding, kinking, or bursting under high internal pressure. This design makes them significantly more resilient than standard single-layer PVC pipes.Construction: Often features a 3-layer design with a PVC or rubber core, a reinforced yarn/fiber braid, and a smooth white outer finish.Aesthetics: The white color is frequently used for sanitary and plumbing applications (like geyser connections or washbasins) as it looks clean and matches bathroom fixtures.Properties: These pipes are generally UV-stabilized, abrasion-resistant, and designed to handle both hot and cold water or air.
Common Diameters 1/2' (12mm), 3/4' (20mm), 1' (25mm)
Working Pressure 8 to 20 kg/cm² (varies by diameter)
Bursting Pressure 15 to 60 kg/cm² (typically 3x-4x working pressure)
Temperature Range -10°C to +60°C (standard PVC)
Standard Lengths 15m, 30m, or 100m coils
Compliance Often meets ISO 18752 or SAE J517 standards
